Timer boundary event

Attach a BPMN event to a task or subprocess that activates when a duration, deadline, or specific date condition is met.

This event is used to integrate time-related triggers into workflows, allowing processes to respond automatically to time-sensitive requirements. It is particularly useful for enforcing deadlines, scheduling periodic actions, or sending notifications, ensuring that time-critical steps are incorporated into the overall process design. This capability is especially valuable for scenarios where time-sensitive actions or notifications need to be integrated within process flows.

Compatibility matrix for Timer Events

Timer Events can be applied to various contexts within BPMN processes. The table below outlines their compatibility with different node types:

Node Type	Timer Event - Interrupting	Timer Event - Non-Interrupting
User Task	Yes	Yes
Service Task	Yes	Yes
Send Message Task	Yes	Yes
Receive Message Task	Yes	Yes
Start Embedded Subprocess	No	No
Call Activity	Yes	Yes

Timer boundary event - interrupting

A Timer Boundary Event is an event attached to a specific activity (task or subprocess) that is triggered when a specified time duration or date is reached. It can interrupt the ongoing activity and initiate a transition.

Configuration

For Timer Boundary Events - Interrupting, the following values can be configured:

Field	Validations	Accepted Values
Name	Mandatory	Name of the boundary event
Timer Type	Mandatory	Date or Duration
Definition	Mandatory	ISO 8601 date or duration

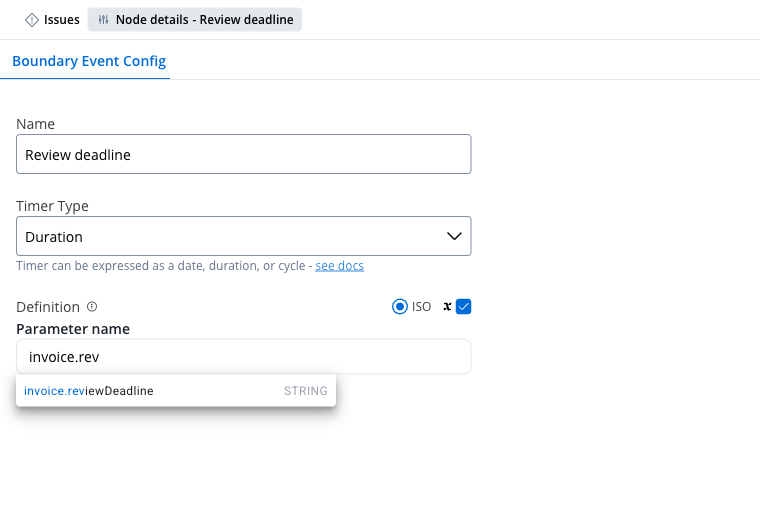

		Process parameter (check the dynamic value box and pick the data key)

General rules

• When the token enters the parent activity, a scheduler is set, and it waits for the timer event to be triggered.
• When the timer is triggered, the ongoing activity is terminated, and the process continues with the defined transition.

Timer boundary event - non-interrupting

A Timer Boundary Event is an event attached to a specific activity (task or subprocess) that is triggered when a specified time duration or date is reached. It can trigger independently of the ongoing activity and initiate a parallel path.

Configuration

For Timer Boundary Events - Non-Interrupting, the following values can be configured:

Field	Validations	Accepted Values
Name	Mandatory	Name of the boundary event
Timer Type	Mandatory	Date, Duration, or Cycle
Definition	Mandatory	ISO 8601 date, duration, or repeating interval
		Spring cron expression (Cycle timer type, Cron format)
		Process parameter (check the dynamic value box and pick the data key)

General rules

• When a token arrives at a node with a Timer Boundary Event - Non-Interrupting associated:
  • A trigger is scheduled, but the current token execution remains unaffected.
• When the token enters the parent activity, a scheduler is set, and it waits for the timer event to be triggered.
• If the timer is a cycle, it is rescheduled for the specified number of repetitions.
• The scheduler is canceled if the token leaves the activity before it is triggered.
